Colours & finishes
RAL shades, custom matching, metallics and textures
WANAN supplies its powder coating series in RAL K7 shades and custom-matched colours, with gloss agreed per project and measured at 60° (ISO 2813). Smooth, sand-texture, wrinkle, bonded-metallic, heat-transfer base and art-effect finishes are available. A library of about 100,000 formulated sample panels shortens matching for repeat and near-match colours.
Finishes
Three families of colour panels
Smooth colours
Gloss, satin and matt in RAL and custom shades

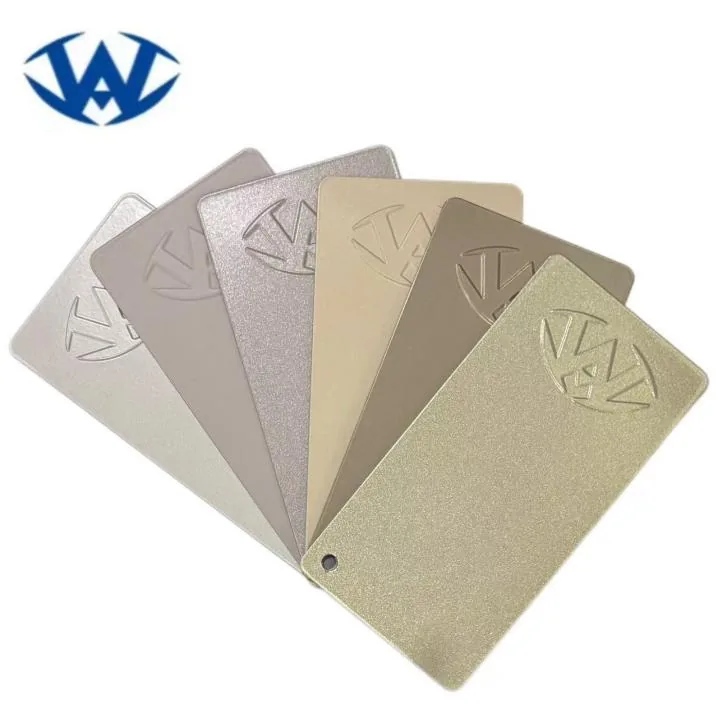

Bonded metallics
Silver, champagne, bronze and colour-metallic effects

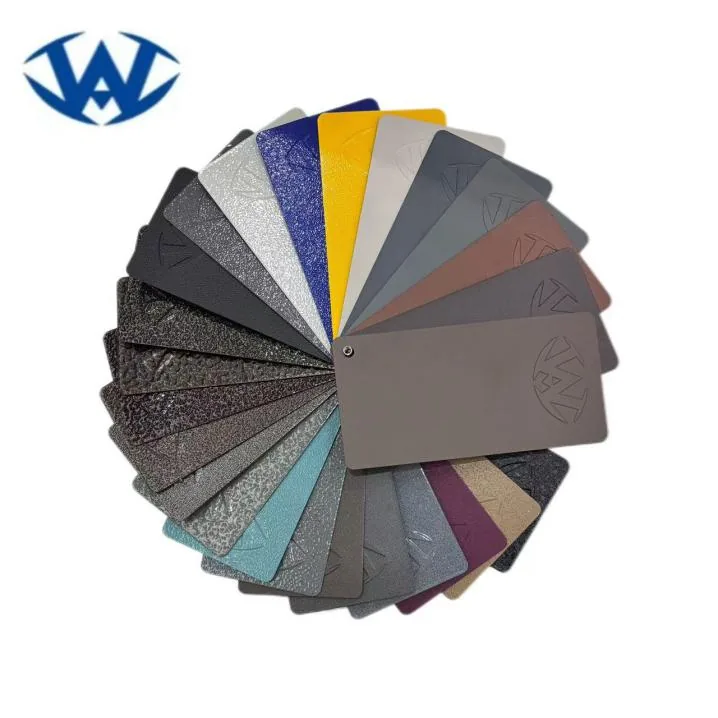

Textures & effects
Sand, wrinkle, hammer, heat-transfer base coats
RAL reference
Frequently specified RAL shades
On-screen colours are approximate. Specify from a physical RAL K7 card or a WANAN colour panel; the full RAL K7 list is available as PDF.
RAL 1013RAL 1015RAL 1023RAL 2004RAL 3000RAL 3020RAL 5005RAL 5010RAL 5015RAL 6005RAL 6018RAL 7001RAL 7016RAL 7024RAL 7032RAL 7035RAL 7038RAL 7040RAL 8017RAL 9001RAL 9003RAL 9005RAL 9006RAL 9007RAL 9010RAL 9016Frequently asked questions
Can WANAN match a colour that is not in the RAL range?
Yes. Send a physical sample panel, a paint chip or a reference from another colour system. WANAN's laboratory matches the shade, gloss and texture, then issues colour panels for approval before production. The library of roughly 100,000 formulated sample panels means most near-match shades can be produced from an existing formulation with minimal development time.
How is gloss specified and measured?
Gloss is agreed per project and measured at 60° with a gloss meter according to ISO 2813. Typical bands are matt (below about 30 GU), satin (30–70 GU) and gloss (above 70 GU). Textured and metallic finishes are approved visually on panels rather than by gloss reading alone, because surface structure changes the measured value.
Are metallic and textured finishes suitable for outdoor use?
Yes, when built on a weather-resistant polyester such as P480, P720 or P1680. Bonded-metallic powders are used outdoors on building products and outdoor equipment; sand-texture and wrinkle finishes hide substrate defects and handling marks. Approval panels are sprayed under production-like settings because film build and gun parameters change the final effect.
Send a sample, get a matched panel
Colour reference or physical sample in, approved colour panel and series recommendation out.
